Technical Information



Velocity is the next generation in counter-current swimming machines. Designed and manufactured in the UK by HeatForm, Velocity has been created after years of research and development to produce the most powerful and pleasant resistant-swimming experience.

Performance

Unit Standard Hidden
Flow Capacity up to 1000 m³/hr up to 900 m³/hr
Max Speed per 100m swim 0’58 1’20

Main Jet

Head Unit Composite body with PVC or stainless steel panel
Colours Light Grey or Anthracite (panel can be lined or tiled)
Minimum Water Depth 1.0m (Cover Panel 1.2m or 1.5m)

Specifications

Single Phase Three Phase
Supply Voltage 230-240V 380-480V
Nominal Current 15.5 A 11.5 A
Rated Current 25 A 16 A
Motor 5HP (4kW)
Motor RPM 3,700
Control Inverter drive
Hydraulic Oil 40L Organic Biodegradable Oil
Main Body (HxWxD) 1105 x 865 x 663 mm
Required Recess 2m x 0.6m
Powerpack (HxWxD) 680 x 470 x 360 mm
Controller (HxWxD) 325 x 210 x 210 mm

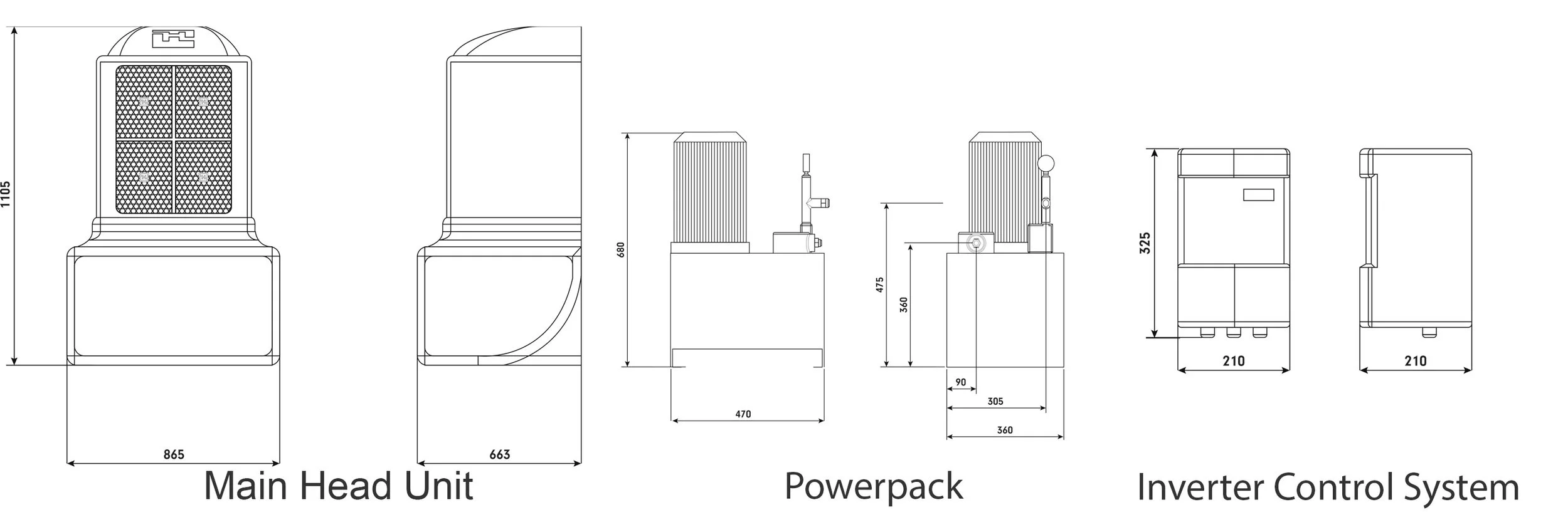

Blueprint drawing of a device with three sections labeled Main Unit, Powerpack, and Controller, with measurements in millimeters.
  • A black-and-white illustration of a heart divided into two parts with a Venn diagram, containing the letters 'E' and 'A' inside the overlap.

    Low Running Costs

    The heart of the Velocity swim jet is the hydraulic power pack which is powered by the HeatForm inverter drive system. This energy efficient motor in turn powers the generously sized 42cm propeller, which when running on anything other than full speed, saves extensively on running costs and noise pollution.

  • Outline of a droplet shape with a gear inside

    Durability

    By not running the motor at full speed all the time, thanks to the variable control system, the lifetime of the components is naturally extended compared to a motor running at full speed all the time

  • A geometric design featuring intersecting white lines forming a symmetric, flower-like pattern on a black background.

    Compatibility

    Thanks to the innovative encasement of the internal pool motor, the Velocity swim jet is compatible with all types of pool water treatment except salt water pools.

  • A lightning bolt symbol inside a circle with arrows indicating rotation.

    Energy Efficient

    The Velocity swim jet’s energy efficient design falls in line with the overriding ethos of the HeatForm brand – to bring to market, freshly-engineered, eco-friendly product designs that are unashamedly high end and high performance.
